Infrared Ceramic Plaques

Infrared Ceramic Plaques

    Product Description

    The gas burner ceramic plaque is used in a variety of industries including commercial and residential food cooking and industrial process heating. The typical applications of gas burner ceramic plaque include fryers, broiler burners, BBQ burners, rotisseries, cheese melters and much more.

Propeties

Hole Pattern Square Round
Materials Cordierite Cordierite
Density 0.45~0.65g/cm3 0.45~0.65g/cm3
Hole Density 200~320 holes/square foot 260/280/320/520 holes/square foot
Wall Thickness / 0.18~0.23 / 0.18~0.33 / 0.35~0.40mm
Hole Depth / 1.06/1.13/1.20mm
Hole Diameter 1.12/1.25/1.42 mm /
Hole Center Distance 1.8/2.2/2.7mm 1.33~1.59mm
Fractional Hole Area 33.5~36.4% 63.5~73.5%e
Water Absorption ＞46% ＞40%
Thermal Expansivity 2.0~2.3*10(-6) 2.0~2.5*10(-6)
Thermostability 850℃-25℃, 3 times 1200℃-25℃, no crack with repeated cooling
Softening Point ＞1375℃ ＞1375℃
Carbon Monoxide Release Rate ≤80ppm ≤80ppm
Release Rate ≤10ppm ≤10ppm
Nitrogen Oxides ＞13Mpa ＞10Mpa
Transverse Compressive Strength ＞6Mpa ＞3Mpa
Regular Dimension of Infrared Ceramic Burner Plate

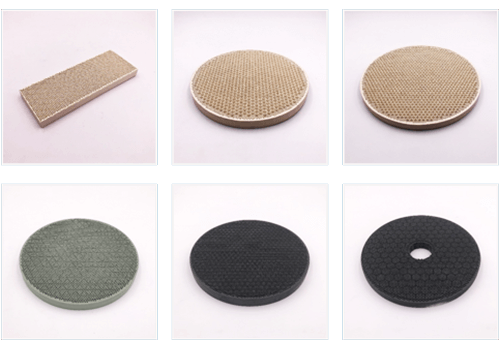

Square Round
Dimension Item Name Dimension Item Name
123*48 Diamond 2 Φ56 Flat Board
131*73 Diamond Φ56 Green Wheel Pattern
132*92 Diamond 1 Φ129 Bigger Hexagon Pattern
132*92 Diamond 2 Φ129 Smaller Hexagon Pattern
132*92 Diamond 2(R7)(-1 column) Φ129 Green Triangular Pattern
132*92 (Bigger Frame) (137-138) Φ129 Bigger Hexagon Pattern
134*76 Diamond Φ150 Smaller Club Pattern
135*100 Diamond 2 Φ150 Green Smaller Club Pattern
135*160 Concave Diamond Φ150/130 Flat Board
135*48 Diamond 2 Φ150/30 High-end Flat Board
135*49 Diamond 2(Specialized Mould) Φ158/31 High-end Club Pattern
135*68 Diamond 1 Φ160 The figure of "Double Dragon Playing Beads"
136*115 Diamond Φ160 Bigger Hexagon Pattern
136*60 Diamond Φ160 Triangular Pattern
136*92 Diamond 1 Φ160 Smaller Club Pattern
136*92 Diamond 2(+1 column) Φ160 Smaller Club Pattern
147*60 Diamond 2 Φ160 Green Triangular Pattern
147*75 Green Maple Board with "8" pattern Φ160 Green Smaller Club Pattern
147*75 Green Board with "8" pattern Φ160 Dark Green with Smaller Club Pattern
147*75 White Board with "8" pattern Φ160 Hexagon Pattern 2
158*60 Triangular Pattern Φ160/31 Smaller Club Pattern
162*60 Triangular Pattern(bigger and smaller frame available) Φ160/67 Bigger Hexagon Pattern
180*60 Diamond(smaller frame)with New Pattern Φ160 White Board with "8" pattern
180*60 Diamond(bigger and smaller frame available) Φ169 White Board with "8" pattern
190*140 Diamond Φ170 Fan(Ultra-high temperature)
198*145 Diamond Φ170 Fan Club Pattern(Ultra-high temperature)
200*145 Concave Club Pattern Φ178 Light Green Full Body Maple with "8" pattern
200*145 Diamond(Ultra-high temperature board) Φ178 Green Maple Board
