Zirconia Structural Ceramics

Zirconia Structural Ceramics

    Product Description

    Structural ceramics, also known as engineering ceramics, fine ceramics, and electronic ceramics, functional ceramics, are collectively referred to as industrial ceramics. They have superior strength, hardness, insulation, heat conduction, high temperature resistance, oxidation resistance, corrosion resistance, wear resistance and high temperature strength and other characteristics. Therefore, under very harsh environment or engineering application conditions, structure ceramics show high stability and excellent mechanical properties and attracted much attention in the material industry. Now its scope of use is accordingly expanding. The development of structural ceramics is called the third "material revolution". With complete equipment, rich experience and stable quality, Baitian has always dominated the zirconia ceramic market in China, and its structural products have been awarded the title of high-tech products in Jiangxi Province.

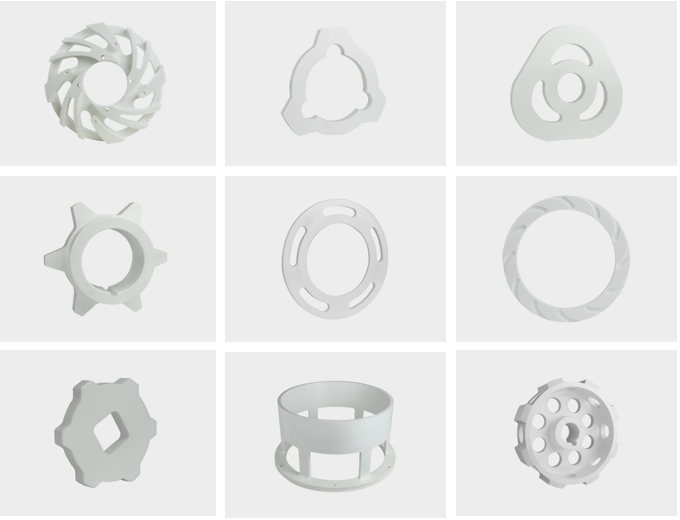

Sand Mill Ceramic Parts

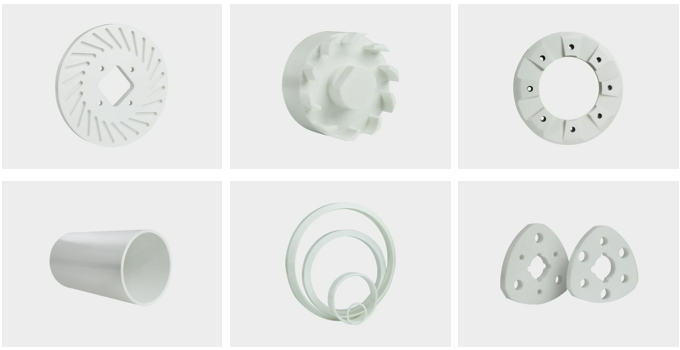

Rotary Mill Ceramic Parts

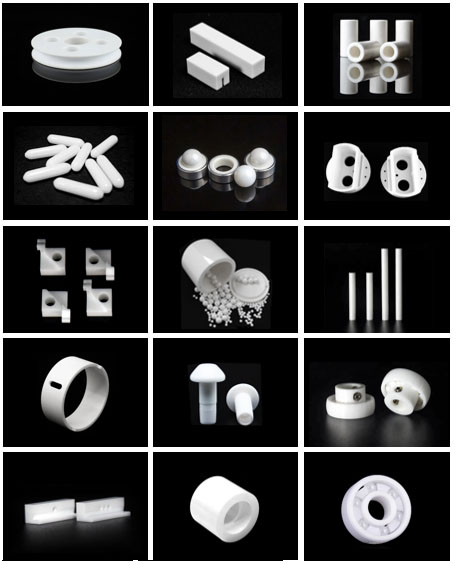

Other Ceramic Parts

Y-TZP Structural Ceramics Properties

Items Unit Typical Values
Component wt% 94.8%Zr02, 5.2%Y2O3
Hardness Kgf/mm 1250
Density G/cm 6
Bending Strength Mpa 900
Modulus of Elasticity Gpa 200

Note: the above data is based on universal test method and the mean of the representative, and it may change with the normal production conditions. As technology service content, sometimes they may be adjusted, so they should not be regarded as product index. If necessary, please contact us for the latest data.

Ce-TZP Structural Ceramics Properties

Items Unit Typical Values
Hardness Kgf/mm 1000
Density G/cm 5.5
Crushing Load KN 15(Φ7)
Bending Strength Mpa 500
Modulus of Elasticity Gpa 200

ZTA Structural Ceramics Properties

Items Unit Typical Values
Hardness Kgf/mm 1400
Density G/cm 4.2
Crushing Load KN 10(Φ7)
Bending Strength Mpa 500
Modulus of Elasticity Gpa 200

Modulus of Elasticity for the Ce-TZP, Y-TZP, and ZTA Ceramic are just the reference value.

Note: the above data is based on universal test method and the mean of the representative, and it may change with the normal production conditions. As technology service content, sometimes they may be adjusted, so they should not be regarded as product index. If necessary, please contact us for the latest data.
